G250

Belimo G250
Belimo G250
Price: Obsolete Part,
Call for Replacement Part
2-way Globe Valve, Bronze Trim, 2", Cv 40, NPT female ends

Valve TypeG250
Valve Size2" [50]
Cv Rating40Cv
Flow Rating--
Flow Pattern2 Way
Flow Characteristicequal percentage
Servicechilled or hot water, 60% glycol, 35# steam
ActionStem up - open A to AB
End FittingNPT female ends
Material (body)bronze
Material (ball)--
Material (plug)brass
Material (disc)composition (EPDM)
Material (stem)stainless steel
Material (seat)bronze
Material (seat O-rings)--
Material (characterizing disc)--
Media Temp Range (water)20°F to 250°F [-7°C to +120°C]
Media Temp Range (steam)32°F to 280°F [0°C to 138°C]
Maximum Inlet Pressure (steam)35 psi (241 kPa)
Maximum Inlet Pressure (water)--
LeakageANSI class IV
Rangeability3:1

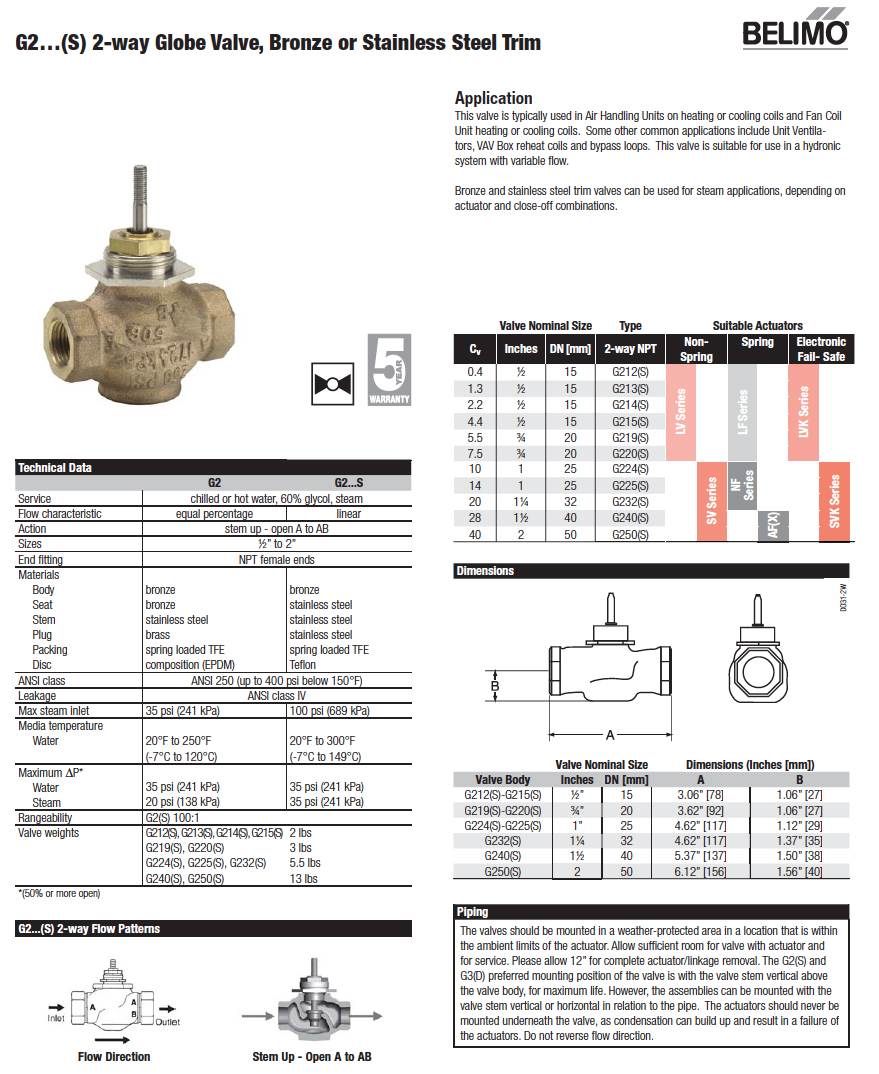

Belimo G250 Technical Information
Item Number: G250
Manufacturer: Belimo
Manufacturer Part No: G250
