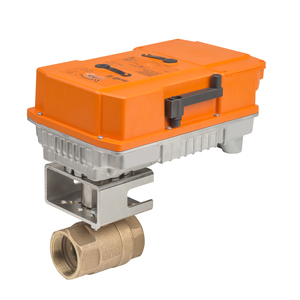

B249VS+PRBUP-3-T


MSRP: $3,531.00
Price: $1,324.13
You Save: $2,206.87 (62 %)

Personalization

Select desired valve porting: Port Setup refers to valve ports A to AB
If needed, use the space below to type in any special valve configuration required for your order:
Custom Setup:300 characters remaining
Enter Valve Tag Info here:
Tag Info: (+ $10.00)(Update Price)54 characters remaining

Specifications

Actuator Type     Non fail-safe
Auxiliary Switches     2 SPDT
Application     Water
Close-off Pressure     600 psi
Control Type     Floating/3-point
Controllable Flow Range     90° rotation
Cv     108
Degree of Protection
  • IP66/67
  • NEMA 4X
  • UL Enclosure Type 4X
Electrical Connection     Terminals
End Fitting     Internal thread
Manual Override
  • 7 mm hex crank
  • supplied
Pattern     2-way
Power Consumption (Running)     20 W
Pressure Independent     NO
Product Type     Combo
Protection category     IP66/67
Running Time (Motor)     35 sec
Trim     Stainless steel
Valve Size     2 " [50]
Voltage AC/DC     AC 24...240 V / DC 24...125 V
Item Number: B249VS+PRBUP-3-T
Manufacturer: Belimo
Manufacturer Part No: B249VS+PRBUP-3-T
